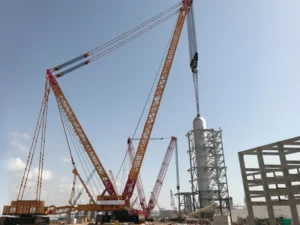

As the world’s largest tonnage-class crawler crane independently developed in China, the XCMG XGC88000 crawler crane has completed over 200 major lifting projects since its first delivery in 2013, setting an industry record with its 4,500-ton maximum lifting capacity. This article will provide an in-depth analysis of the XGC88000’s core performance parameters, technological innovations, and engineering applications.
XCMG XGC88000 crawler crane Core Performance Parameters
| Category | Specific Parameters | Industry Significance |
| Maximum Rated Lift Capacity | 4,500 tons with main boom (equivalent to simultaneously lifting 3,000 family cars) | The world’s only crawler crane exceeding the 4,000-ton class. |
| Maximum Lifting Moment | 88,000 t·m (combined main boom and superlift operation) | Supports stable lifting demands for ultra-large loads. |
| Boom Length | Standard main boom 120 meters, extendable to 216 meters (optional tower jib extends to 300 meters and beyond) | Meets ultra-high lifting requirements for petrochemical towers, wind turbine blades, and other applications. |
| Extra Lift Radius | 28-37 meters (dynamically adjustable), superlift counterweight 1,650 tons | Precisely controls load swing, improving safety in complex working conditions. |
| Chassis Configuration | Track width 4.5 meters, ground pressure ≤ 0.12 MPa (equivalent to walking on an eggshell) | Adapts to complex foundation conditions such as mudflats and soft soils. |
| Powertrain | 16-cylinder diesel engine (total power 6,400 horsepower), hydraulic system pressure 35 MPa | Ensures continuous operation under heavy loads. |
Note: Specifications are based on the latest upgraded model (XGC88000-2) released in 2025. Compared to the original model, it features further improvements in micro-maneuverability and intelligent control.
XCMG XGC88000 Crawler Crane Technological Innovation
The XCMG XGC88000 crawler crane goes beyond simply piling up specifications. Instead, it addresses the core pain points of ultra-large tonnage cranes through systematic technological innovation:
1. Structural Stability Under Ultra-Large Loads
Issue: The bending moment and shear forces generated by a 4,500-ton load can easily cause the boom to deform or break.
Solution: Utilizes a composite structure featuring a multi-section box-type telescopic boom and embedded reinforcement ribs. The main boom is constructed of Q690D high-strength steel (yield strength ≥ 690 MPa), and critical welds are welded using robotic automation (first-pass qualification rate ≥ 99.5%). The superlift counterweight system uses a dynamic balancing algorithm to adjust the counterweight position in real time, controlling the load runout within ±0.5°.
2. Adaptability to Complex Working Conditions
Problem: Petrochemical and nuclear power projects often require operations in narrow spaces or on soft soil.
Solution: The chassis utilizes a modular design with hydraulically retractable crawlers, supporting flexible positioning from 45m x 45m to 90m x 90m. The crawler tracks provide a contact area of 200 square meters (equivalent to half a basketball court), and the adaptive leveling system enables stable operation on uneven surfaces with slopes of ≤3°.
Looking for a supplier of XCMG XGC88000 crane undercarriage parts or other XCMG crawler crane parts? Contact us!
3. Extreme Environmental Tolerance
Issue: Desert heat (over 50°C), polar temperatures (-40°C), and high salt spray at sea can all cause equipment failure.
Solution: Key components (such as hydraulic cylinders and electrical control cabinets) are equipped with nano-grade thermal insulation coatings (temperature resistant from -50°C to 80°C) and three-proofing (anti-corrosion, anti-salt spray, and anti-dust) treatments. The hydraulic system uses low-temperature, anti-wear hydraulic oil (maintains fluidity at -40°C) to ensure normal startup in -40°C environments.
4. Intelligent Precision Control
Innovative Technology: Equipped with a “Crane Intelligent Brain” control system, it integrates:
Millimeter-level Positioning: Utilizing multi-sensor fusion technology combining GPS, laser ranging, and inertial navigation, the system achieves load positioning accuracy of ±20mm (compared to ±100mm for traditional cranes).
Automatic Path Planning: Upon input of lifting point coordinates, the system automatically calculates the optimal lifting angle, speed, and counterweight combination, reducing manual intervention.
Health Monitoring: Over 200 sensors monitor boom stress, hydraulic oil temperature, engine speed, and other parameters in real time, and AI algorithms predict component lifespan (providing a 30-day warning of potential failures).
From breaking the monopoly of foreign technology to becoming the global benchmark for ultra-large tonnage cranes, the XGC88000 not only epitomizes China’s equipment manufacturing industry’s journey from following behind to leading, but also serves as the anchor behind mega-projects. Its 4,500-ton lifting capacity, extreme stability, and intelligent capabilities are redefining the boundaries of the impossible.
