In the world of mechanical engineering and construction, terms like “sheave” and “pulley” often come up, leading to confusion among professionals and enthusiasts alike. While they are related components in many applications, they have distinct characteristics and functions that are important to understand. In this article, we will delve into the details of sheaves and pulleys, exploring their definitions, functions, and appearances, while also addressing why “sheave” is pronounced as “shiv.”

Why is Sheave Pronounced “Shiv”?

The pronunciation of “sheave” as “shiv” can be traced back to its etymological origins. The word derives from the Old English term “sceafa,” which referred to a wheel or pulley. Over centuries, the English language has undergone various changes in pronunciation and spelling, and this evolution has led to the modern-day pronunciation. Understanding this linguistic background can help clarify why some terms sound different from their spelling, especially in technical jargon.

What is a Sheave?

A sheave is essentially a wheel or disk with a groove along its circumference, designed specifically for holding and guiding a rope, cable, or belt. Sheaves are a critical component in various mechanical systems, playing a key role in the movement and manipulation of heavy loads. They can be found in countless applications, from cranes and elevators to conveyor systems and sailboats.

In mechanical setups, sheaves are often used in conjunction with other components, such as bearings, to facilitate smooth operation. They can be made from various materials, including steel, aluminum, or plastic, depending on their intended use and the load they need to support.

What is the Function of a Sheave?

The primary function of a sheave is to change the direction of force applied to a rope or cable, which allows for more efficient lifting and moving of heavy objects. By redirecting the force, sheaves help reduce the amount of effort needed to lift loads. This is particularly important in applications such as block and tackle systems, where multiple sheaves work together to provide mechanical advantage.

Moreover, sheaves minimize friction between the rope and the wheel, which enhances the overall efficiency of the system. In scenarios where heavy lifting is required, such as in construction or shipping, using sheaves can significantly ease the burden on workers and machinery alike.

In addition to their role in lifting and moving, sheaves are also essential for providing tension in systems where belts or ropes are used. For instance, in a conveyor belt system, sheaves help maintain the correct tension, ensuring smooth operation and preventing slippage.

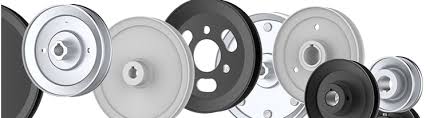

What Does a Sheave Look Like?

Visually, a sheave resembles a wheel or disc. It features a central hub through which a shaft or axle can pass, allowing it to rotate freely. The most distinguishing characteristic of a sheave is the groove that runs along its outer edge. This groove is specifically designed to accommodate a rope or cable, ensuring that it remains in place during operation.

Sheaves can vary in size, shape, and material, depending on their application. For example, a sheave used in a small sailing boat may be much smaller and lighter than one designed for a large construction crane. The materials used to construct sheaves can also differ; while heavy-duty applications often require robust steel or aluminum sheaves, lighter applications may utilize durable plastics.

In addition to standard sheaves, there are also specialized types, such as multiple sheave blocks or sheave assemblies, which combine several sheaves to provide even greater mechanical advantages. These configurations are common in rigging systems, where multiple ropes are used to lift heavy loads efficiently.

Sheave vs. Pulley: Key Differences

While the terms “sheave” and “pulley” are sometimes used interchangeably, there are important distinctions between them.

1. Definition:

Sheave: A grooved wheel specifically designed for guiding ropes or cables.

Pulley: A general term that includes various types of wheels used to manage ropes or cables.

2. Functionality:

Sheaves primarily focus on reducing friction and redirecting force.

Pulleys can serve multiple functions, including load direction, support, and mechanical advantage.

3. Design:

Sheaves are characterized by their grooved edges.

Pulleys can be either grooved or flat, depending on their application.

4. Application:

Sheaves are typically used in systems where precise load management is crucial.

Pulleys are used in a wider range of applications, from simple to complex mechanical systems.

Conclusion

In summary, both sheaves and pulleys play vital roles in mechanical systems that require the movement of heavy loads. Sheaves, pronounced “shiv,” are specialized components that guide and support ropes or cables, enhancing efficiency and reducing the effort needed for lifting and moving. By understanding their functions, appearances, and distinctions, professionals in various industries can make informed decisions about the components they choose to use.

As we continue to explore advancements in mechanical engineering and construction, recognizing the ultimate importance of these components will help ensure safety, efficiency, and innovation in our designs and applications. Whether you’re working with cranes, elevators, or simple block and tackle setups, knowing the nuances of sheaves and pulleys will aid in optimizing performance and achieving success in your projects.
