Manitowoc MLC300 Crane

Classification：Industry News Time:2026-03-15 10:39:00 View:322

Summary：VM is a professional Manitowoc MLC300 undercarriage parts supplier. This article will introduce you to the excellent performance of Manitowoc MLC300. If you need to replace Manitowoc MLC300 undercarriage parts, welcome to contact VM!

Discover the powerful performance specifications and innovative VPC-MAX® system of the Manitowoc MLC300 crane. VM supplies high-quality undercarriage components. Contact us today to purchase replacement parts!

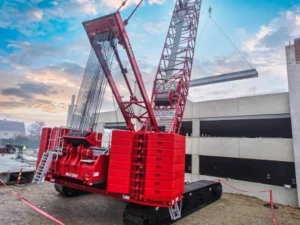

Manitowoc MLC300 Crane

Manitowoc MLC300 crane features advanced Variable Position Counterweight® (VPC®) technology, marking an innovation in adjustable counterweight technology in the crane industry. This technology not only enables the MLC300 crane to adapt to a variety of lifting needs but also significantly improves its performance and operating efficiency.

Unique to the MLC300 crane is its ability to actively adjust counterweight position to optimize the crane’s stability and lifting capacity. Compared with traditional crane designs that rely on fixed passive body weight, VPC® technology allows the Manitowoc MLC300 crane to maintain optimal center of gravity distribution and ground bearing pressure under various working conditions, greatly improving operational safety and efficiency.

This model offers two configuration options, VPC® and VPC-MAX®. Users can choose different counterweight settings according to specific engineering needs to further optimize the accuracy and efficiency of hoisting operations. Whether on construction sites or industrial projects, the Manitowoc MLC300 crane demonstrates its excellent adaptability and flexibility, providing users with new lifting solutions.

Manitowoc’s product manager said, “The launch of the Manitowoc MLC300 represents an important innovation for Manitowoc in the field of crane technology. We are committed to providing customers with safer and more efficient lifting solutions by introducing advanced adjustable counterweight technology to help them achieve better business results in complex engineering environments.”

Manitowoc MLC300 Performance Specifications

Category	Parameter	Specification (Imperial)
Core Capacities	Maximum Capacity	386 USt (350 t)
	Maximum Load Moment	15,515 ft-kips
	Max Load Moment (with VPC-MAX™)	29,793 ft-kips
Main Boom	Boom Model	B10:500
	Maximum Boom Length	334.6 ft
	Boom Model (with VPC-MAX™)	B60:500
	Max Boom Length (with VPC-MAX™)	393.7 ft
Jib Options	Fixed Jib Model	No. 148
	Max Fixed Jib Length	137.8 ft
	Luffing Jib Model	LJ10:501
	Max Luffing Jib Length	315.0 ft
Counterweight	VPC™ Counterweight (Standard)	386,200 lb
	VPC™ Counterweight (Maximum)	474,400 lb
Power Unit	Engine Make/Model	Cummins QSG-12
	Engine Power	450 hp @ 1800 rpm
	Emissions Level	U.S. EPA/CARB Tier 4 Final / EU Stage IV
	Fuel Tank Capacity	255 gal
Winches & Drums	Main Hoist Line Pull	36,760 lb (on all layers)
	Main Hoist Wire Rope Diameter	28 mm
	Auxiliary Hoist Line Pull (Optional)	36,760 lb (on all layers)
	Luffing/Aux Drum Line Pull	30,000 lb (on all layers)
	Rigging Winch Line Pull	2,250 lb
Operating Speeds	Maximum Swing Speed	2.0 rpm
	Maximum Ground Travel Speed	1.0 mph (approx. based on 8 mph max)
Lowerworks	Crawler Length	31 ft 10 in
	Standard Crawler Pad Width	48 in
	Optional Crawler Pad Width	60 in
Key Component Weights	Rotating Bed (Max Configuration)	120,800 lb
	Live Mast Assembly	19,800 lb
	Single Crawler Assembly	50,000 lb
	Counterweight Box (Each)	22,000 lb
	26.2 ft Boom Butt	36,000 lb
Working Weight	Configuration Example (98.4 ft boom, 386,200 lb counterweight)	Approx. 673,000 lb

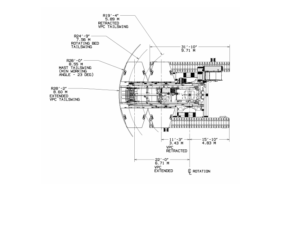

Manitowoc MLC300 Undercarriage: Dimensions & Specifications

Category	Parameter	Imperial Measurement
Outline Dimensions	Crawler Length	31 ft 10 in
	Crawler Width (Overall with standard pads)	3 ft 11 in (each)
	Crawler Height	4 ft 3 in
	Carbody Connection	FACT™ with hydraulic power-actuated pins
Crawler Specifications	Standard Track Pad Width	48 in (cast steel)
	Optional Track Pad Width	60 in
	Tractive Effort	Ample for counter-rotation with full-rated load
	Max Ground Speed	8 mph
Component Details	Crawler Assembly Weight (Each)	50,000 lb
	Left / Right Crawler Interchangeability	Yes (fully interchangeable)
	Drive System	Independently powered by a variable displacement hydraulic motor
	Rollers	Automatically lubricated intermediate rollers
	Connection Type	Screw-together hydraulic quick disconnects

FAQ

1. What is VPC® technology and how does it work?
VPC® stands for Variable Position Counterweight™. It is a Manitowoc proprietary system that automatically positions the crane’s upperworks counterweight along the rotating bed based on the lifted load, boom length, and load radius. This optimizes crane stability and lifting capacity in real-time and eliminates the need for a passive carbody counterweight. This results in a reduced transport configuration, better center of gravity, and lower ground bearing pressure.

2. What is VPC-MAX® and how does it differ from standard VPC®?
VPC-MAX® is an optional attachment for the MLC300 that further increases its lifting capability. It includes additional components like a longer mast and a second swing drive. While standard VPC® moves counterweight based on boom angle, the VPC-MAX® system automatically repositions the counterweight based on forward movement, load, and radius. This significantly increases the maximum load moment and allows for longer boom and jib combinations, such as a 393.7 ft main boom. Notably, the VPC-MAX® counterweight assembly never touches the ground, minimizing jobsite preparation.

3. What engine powers the MLC300?
The MLC300 is powered by a Cummins QSG-12 diesel engine. It is a 6-cylinder, 11.8-liter engine that produces 450 hp (336 kW) at 1800 rpm. It is compliant with U.S. EPA/CARB Tier 4 Final and EU Stage IV emission standards.

4. What is the maximum lifting capacity of the MLC300?
The Manitowoc MLC300 has a maximum rated capacity of 386 USt (350 t) in its standard configuration. With the optional VPC-MAX® attachment, it is rated at 330 USt (300 t) .
